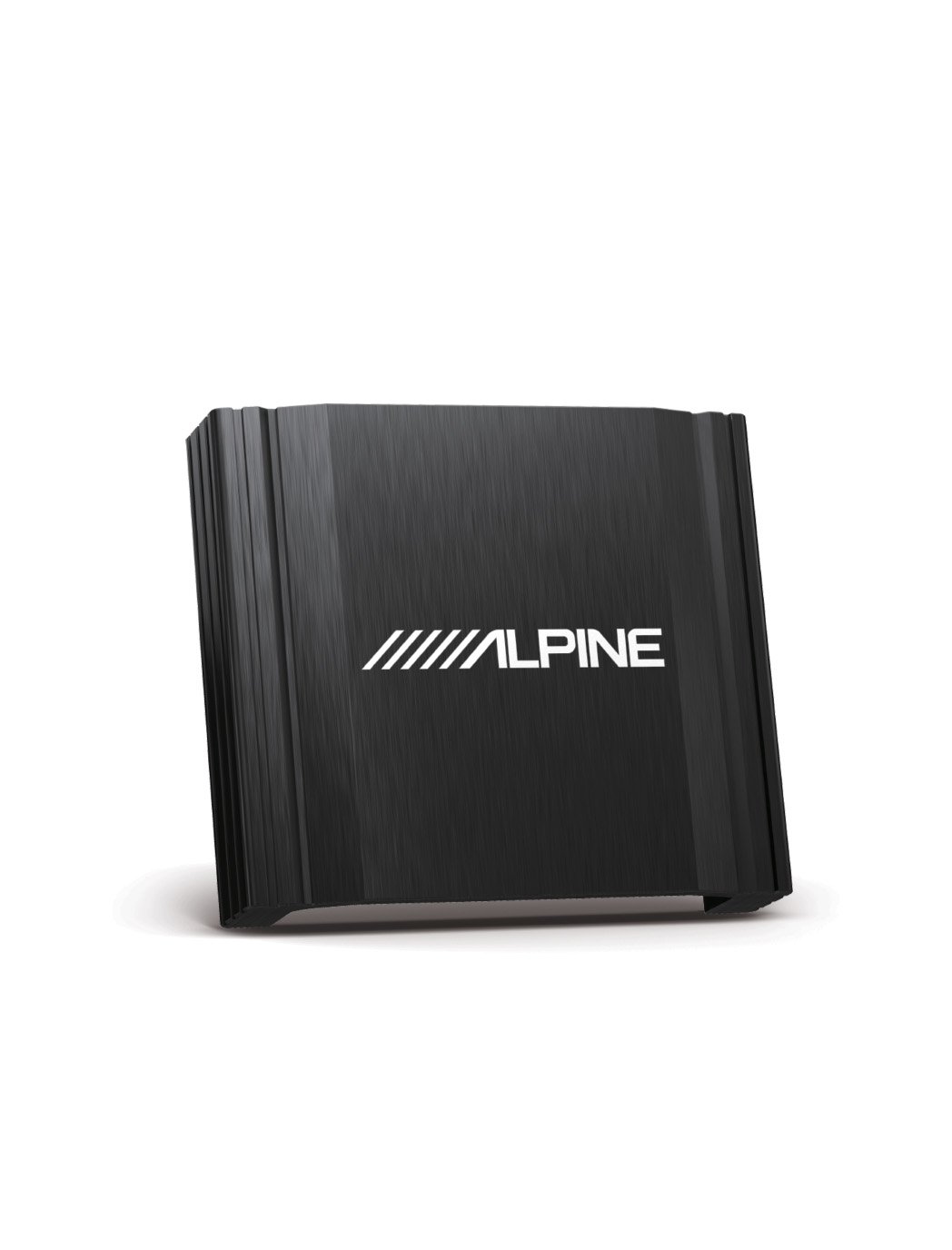

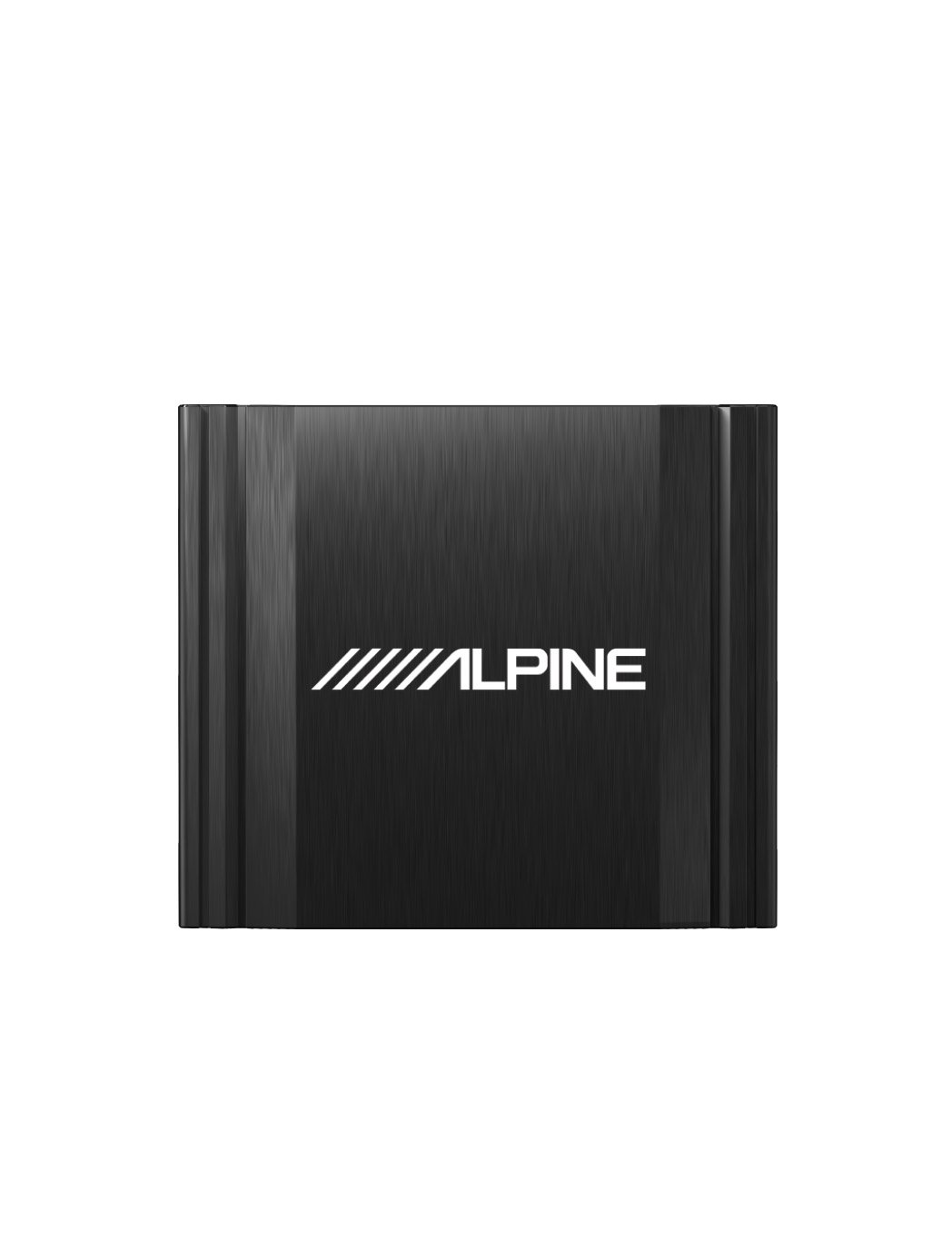

ALPINE PXE-640E-EL 6-Channel Digital Sound Processor with Built-in Amplifier

The Alpine PXE-640E-EL is a compact yet powerful 6-channel sound processor with integrated amplification, designed to significantly improve in-car audio quality while offering excellent value. It belongs to Alpine’s E-Series lineup, engineered for efficient and precise audio tuning without the need for complex external components.

Core Features & Sound Quality

Integrated DSP + Amplifier:

• The PXE‑640E‑EL combines a digital signal processor (DSP) with a built-in amplifier, providing both advanced tuning control and amplified output in a single unit, ideal for enhancing factory or aftermarket systems without multiple devices.

Precision Tuning Capabilities:

• Supports detailed tuning via PC or smartphone using Alpine’s Music app.
• Offers multi-band EQ and independent crossover adjustments for each channel, enabling fine-tuning of frequency response, imaging, and balance.
• Adjustments include high-pass/low-pass filters and parametric/graphic equalization.

Audio Performance Specs:

• Frequency response from 20 Hz to 20 kHz (1 Hz steps) for accurate, full-range audio reproduction.
• Sampling rate of 48 kHz / 24-bit ensures high-resolution sound.
• Outputs support 4 channels Hi-Level + 2 RCA, with rated output around 25 W RMS per channel.

Connectivity & Control:

• High-resolution Bluetooth input allows wireless audio streaming.
• Control and fine-tuning are available through Alpine Music app, letting you adjust EQ, time alignment, and crossover settings from your smartphone or computer.

Design & Installation:

• Compact and lightweight, easy to install in tight spaces.
• Designed as a cost-effective solution for users wanting a significant audio upgrade without breaking the bank, offering performance that compares favorably to more expensive standalone DSP and amplifier combinations.
